• Flash Lens

1. The lens attached to the front side of the LED maximizes the light efficiency. LSR (Liquid Silicone Lubber) and Clear Epoxy are used
    as raw material to make the lens in our company. We make our best effort to provide one-stop process in the mock-up mold
    manufacturing, sample production, mass production mold manufacturing, production, inspection, and shipment for customer satisfaction.

2. The flash lens is classified with two lenses in accordance with its attachment method.

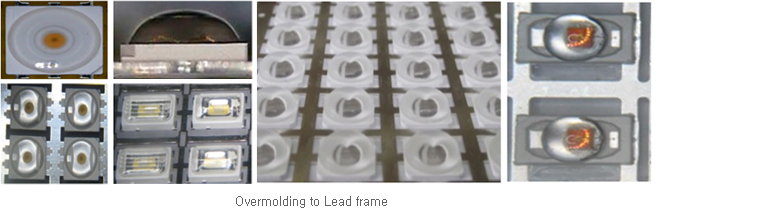

   1) Mounting type : To attach the Lens on the LED Chip (Pre-molded Lens)

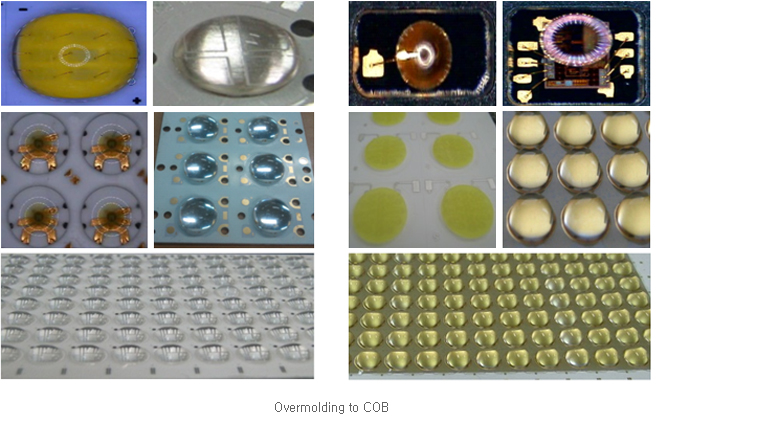

   2) Overmolding type : To mold the Lens on the LED Chip in the mold (Direct Type)

3. Applications

   1) Mounting type : Smart Phone, (Galaxy S, Optimus etc)
   2) Overmolding type : Auto lighting, LED TV

• Mounting type
• Overmolding type
